Ebintu ebikolebwa .

Ebyuma ebisiba ebyuma ebisiba ebyuma .

Omutindo: DIN7603
Ebintu ebikozesebwa: ebyuma ebisiba ebyuma ebiziyiza .
Era erinnya: DIN 7603 gaasikiti
Ebikozesebwa: Ekyuma .
Obuwanvu: M2/ M2.5/ M3/ M3.5/ M4/ M5/ M6/ M7/ M8/ M10/ M12/ M14/ M16/ M18/ M20/ M22/ M24/ M27/ M30/ M36/ M42/ M48/ M56/ M6 42/ M80/ M8/M0/M 0/m10/ M56/ M64/ M8/ M80/ M8/M0/M 0/M 0/m00/m26/ M56/ M64/ M8/ M80/ M9/ M1/M 0/ M56/ M64/ M8/ M80/ M9/ M16/ M56/ M64/ M8/ M80/ M1/M 0/m1
Finish: plain, omuddugavu, zinc plated, hot dipped galvanized, oxidation, dacromet, phosphating, cadmium electroplate, nickel plated
MOQ: 1000kgs
Obudde obukulembera: Ennaku 30 ku 60

Weereza okwebuuza .

Product Enyanjula .

AYA Fasteners (HEBEI) Co., Ltd. y’emu ku kkampuni ezisinga okukola obulungi n’okugabira ebyuma ebisiba ebyuma mu China. Nsaba mubeere ba ddembe okugula ebyuma ebisiba ebyuma eby'omutindo ogwa waggulu ebikoleddwa mu China wano okuva mu kkolero lyaffe. Okufuna okwebuuza ku miwendo, tutuukirira.

Metal Sealing Washers-AYA

Ng’omugabi w’ensi yonna ow’okunyweza enkola z’okusiba, enkola ya AYA eya senvice nayo eri kumpi ne bakasitoma ng’ebintu bya Aya. Okuva mu kunnyonnyola kwetaaga okugoberera-Up services, AYA tejja kufuba mangu era tajja kuyamba bakasitoma kugonjoola bizibu byonna eby’okusiba ebibaawo, okumalawo okweraliikirira kwa bakasitoma.

Ennyonnyola y'ebintu .

Erinnya ly'ekintu .	Ebyuma ebisiba ebyuma ebisiba ebyuma .
Era erinnya lyayo lituumiddwa .	DIN 7603 Gaasi .
Ekikozesebwa	Kyuuma
Omutindo	DIN7603 .
dayamita .	Φ4×8, Φ5×7.5, Φ5.5×8, Φ6.5×9.5, Φ7×15, Φ8×11.5, Φ10×13.5, Φ12×15.5, Φ12×16, Φ12×19, Φ14×18, Φ14×20, Φ15×19, Φ15×23, Φ16×20, Φ17×21, Φ18×22, Φ20×24, Φ21×26, Φ22×27, Φ23×28, Φ24×29, Φ25×30, Φ26×31, Φ27×32, Φ28×33, Φ30×36, Φ32×38, Φ33×39, Φ35×41, Φ36×42, Φ38×44, Φ39×46, Φ40×47, Φ42×49, Φ44×51, Φ45×52, Φ48×55, Φ50×57, Φ52×60, Φ54×62, Φ55×63, Φ56×64, Φ58×66, Φ60×68, Φ64×72, Φ65×74, Φ70×79, Φ75x84, Φ78×88, Φ80×90, Φ85×95, Φ90×100
Okumaliriza	plain, omuddugavu, zinc plated, hot dipped galvanized, oxidation, dacromet, phosphating, cadmium electroplate, nickel plated

Obunene			Φ4×8	Φ5×7.5	Φ5.5×8	Φ6.5×9.5	Φ7×15	Φ8×11.5	Φ10×13.5	Φ12×15.5	Φ12×16	Φ12×19
Obunene			Φ4×8	Φ5×7.5	Φ5.5×8	Φ6.5×9.5	Φ7×15	Φ8×11.5	Φ10×13.5	Φ12×15.5	Φ12×16	Φ12×19
d	min=Obunene bw'erinnya .		4.2	5.2	5.7	6.7	7.2	8.2	10.2	12.2	12.2	12.2
d	Max .		4.5	5.5	6	7	7.5	8.5	10.5	12.5	12.5	12.5
dc	Max=Obunene bw'erinnya .		7.9	7.4	7.9	9.4	14.9	11.4	13.4	15.4	15.9	18.9
dc	Min .		7.7	7.2	7.7	9.2	14.7	11.2	13.2	15.2	15.7	18.7
L	al,ST,CU,VF,ZN .	Obunene bw’erinnya .	1	1	1	1	1.5	1	1	1.5	1.5	1.5
		Max .	1.2	1.2	1.2	1.2	1.7	1.2	1.2	1.7	1.7	1.7
		Min .	0.8	0.8	0.8	0.8	1.3	0.8	0.8	1.3	1.3	1.3
	FA .	Obunene bw’erinnya .	1	1	1	1	1	1	1	1.5	1.5	1.5
		Max .	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.65	1.65	1.65
		Min .	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1.35	1.35	1.35
	PRG .	Obunene bw’erinnya .	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
		Max .	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
		Min .	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
	PR .		0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
buli yuniti 1000≈kg .	±25%	FA .	0.066	0.039	0.043	0.063	0.373	0.092	0.111	0.195	0.23	0.461
		VF .	0.036	0.022	0.024	0.035	0.228	0.051	0.062	0.107	0.126	0.282
		PRG .	0.017	0.01	0.011	0.016	0.113	0.023	0.028	0.033	0.038	0.139
		PR .	0.01	0.006	0.007	0.01	0.069	0.014	0.017	0.02	0.023	0.085
		Al .	0.089	0.053	0.058	0.085	0.559	0.124	0.15	0.264	0.311	0.691
		St	0.259	0.155	0.168	0.247	1625	0.362	0.435	0.767	0.905	2.01
		Cu .	0.294	0.176	0.191	0.28	1.842	0.412	0.493	1.87	1.03	2.28
		Zn .	-	-	-	-	1.478	-	-	-	-	1.828
Obunene			Φ14×18	Φ14×20	Φ15×19	Φ15×23	Φ16×20	Φ17×21	Φ18×22	Φ20&×24	Φ21×26	Φ22×27
Obunene			Φ14×18	Φ14×20	Φ15×19	Φ15×23	Φ16×20	Φ17×21	Φ18×22	Φ20&×24	Φ21×26	Φ22×27
d	min=Obunene bw'erinnya .		14.2	14.2	15.2	15.2	16.2	17.2	18.2	20.2	21.2	22.2
d	Max .		14.5	14.5	15.5	15.5	16.5	17.5	18.5	20.5	21.5	22.5
dc	Max=Obunene bw'erinnya .		17.9	19.9	18.9	22.9	19.9	20.9	21.9	23.9	25.9	26.9
dc	Min .		17.7	19.7	18.7	22.7	19.7	20.7	21.7	23.7	25.7	26.7
L	al,ST,CU,VF,ZN .	Obunene bw’erinnya .	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
		Max .	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7
		Min .	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
	FA .	Obunene bw’erinnya .	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
		Max .	1.65	1.65	1.65	1.65	1.65	1.65	1.65	1.65	1.65	1.65
		Min .	1.35	1.35	1.35	1.35	1.35	1.35	1.35	1.35	1.35	1.35
	PRG .	Obunene bw’erinnya .	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
		Max .	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6	0.6
		Min .	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
	PR .		0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
buli yuniti 1000≈kg .	±25%	FA .	0.264	0.44	0.28	0.644	0.3	0.32	0.328	0.36	0.5	0.522
		VF .	0.145	0.242	0.154	0.394	0.165	0.176	0.18	0.198	0.275	0.288
		PRG .	0.045	0.074	0.047	0.195	0.05	0.053	0.055	0.06	0.083	0.087
		PR .	0.027	0.044	0.028	0.119	0.03	0.032	0.033	0.036	0.05	0.052
		Al .	0.356	0.595	0.378	0.967	0.403	0.433	0.444	0.488	0.675	0.705
		St	1.03	1.73	1.1	2.81	1.179	1.26	1.29	1.42	1.96	2.05
		Cu .	1.17	1.96	1.25	3.19	1.33	1.43	1.46	1.16	2.22	2.32
		Zn .	-	1.71	-	2.556	-	-	-	-	-	-
Obunene			Φ23×28	Φ24×29	Φ25×30	Φ26×31	Φ27×32	Φ28×33	Φ30×36	Φ32×38	Φ33×39	Φ35×41
Obunene			Φ23×28	Φ24×29	Φ25×30	Φ26×31	Φ27×32	Φ28×33	Φ30×36	Φ32×38	Φ33×39	Φ35×41
d	min=Obunene bw'erinnya .		23.3	24.3	25.3	26.3	27.3	28.3	30.3	32.3	33.3	35.3
d	Max .		23.6	24.6	25.6	26.6	27.6	28.6	30.6	32.6	33.6	35.6
dc	Max=Obunene bw'erinnya .		27.9	28.9	29.9	30.9	31.9	32.9	35.9	37.9	38.9	40.9
dc	Min .		27.7	28.7	29.7	30.7	31.7	32.7	35.7	37.7	38.7	40.7
L	al,ST,CU,VF,ZN .	Obunene bw’erinnya .	2	2	2	2	2	2	2	2	2	2
		Max .	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2
		Min .	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
	FA .	Obunene bw’erinnya .	2	2	2	2	2	2	2	2	2	2
		Max .	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2
		Min .	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
	PRG .	Obunene bw’erinnya .	1	1	1	1	1	1	1	1	1	1
		Max .	1.15	1.15	1.15	1.15	1.15	1.15	1.15	1.15	1.15	1.15
		Min .	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85
	PR .		0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
buli yuniti 1000≈kg .	±25%	FA .	0.705	0.733	0.765	0.793	0.815	0.845	1.13	1.2	1.24	1.3
		VF .	0.386	0.403	0.422	0.435	0.45	0.463	0.62	0.655	0.673	0.713
		PRG .	0.177	0.184	0.19	0.197	0.204	0.212	0.28	0.298	0.305	0.323
		PR .	0.054	0.055	0.057	0.059	0.062	0.064	0.084	0.09	0.092	0.097
		Al .	0.95	0.99	1.03	1.07	1.1	1.14	1.52	1.6	1.65	1.74
		St	2.77	2.88	2.99	3.1	3.21	3.31	4.41	4.66	4.8	5.07
		Cu .	3.24	3.26	3.4	3.51	3.64	3.75	5	5.27	5.44	5.73
		Zn .	-	-	-	-	-	-	-	-	-	-
Obunene			Φ36×42	Φ38×44	Φ39×46	Φ40×47	Φ42×49	Φ44×51	Φ45×52	Φ48×55	Φ50×57	Φ52×60
Obunene			Φ36×42	Φ38×44	Φ39×46	Φ40×47	Φ42×49	Φ44×51	Φ45×52	Φ48×55	Φ50×57	Φ52×60
d	min=Obunene bw'erinnya .		36.3	38.3	39.3	40.3	42.3	44.3	45.3	48.3	50.2	52.5
d	Max .		36.6	38.6	39.6	40.6	42.6	44.6	45.6	48.6	50.5	53
dc	Max=Obunene bw'erinnya .		41.9	43.9	45.9	46.9	48.9	50.9	51.9	54.9	56.9	59.8
dc	Min .		41.7	43.7	45.7	46.7	48.7	50.7	51.7	54.7	56.7	59.5
L	al,ST,CU,VF,ZN .	Obunene bw’erinnya .	2	2	2	2	2	2	2	2	2	2.5
		Max .	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.7
		Min .	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	2.3
	FA .	Obunene bw’erinnya .	2	2	2	2	2	2	2	2	2	2
		Max .	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2
		Min .	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
	PRG .	Obunene bw’erinnya .	1	1	1	1	1	1	1	1	1	1.5
		Max .	1.15	1.15	1.15	1.15	1.15	1.15	1.15	1.15	1.15	1.7
		Min .	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85	1.3
	PR .		0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
buli yuniti 1000≈kg .	±25%	FA .	1.34	1.41	1.74	1.76	1.83	1.91	1.95	2.07	2.15	2.9
		VF .	0.732	0.767	0.943	0.966	1.02	1.06	1.08	1.14	1.18	1.6
		PRG .	0.332	0.348	0.428	0.438	0.457	0.478	0.479	0.518	0.54	0.87
		PR .	0.1	0.104	0.128	0.132	0.138	0.144	0.144	0.156	0.162	0.174
		Al .	1.79	1.88	2.32	2.37	2.47	2.58	2.64	2.8	2.9	3.85
		St	5.2	5.47	6.73	6.88	7.2	7.5	7.67	8.15	8.45	11.4
		Cu .	5.88	6.15	6.96	7.8	8.15	8.5	8.68	9.23	9.56	12.9
		Zn .	-	-	-	-	-	-	-	-	-	-
Obunene			Φ54×62	Φ55×63	Φ56×64	Φ58×66	Φ60×68	Φ64×72	Φ65×74	Φ70×79	Φ75×84	Φ78×88
Obunene			Φ54×62	Φ55×63	Φ56×64	Φ58×66	Φ60×68	Φ64×72	Φ65×74	Φ70×79	Φ75×84	Φ78×88
d	min=Obunene bw'erinnya .		54.5	55.5	56.5	58.5	60.5	64.5	65.5	70.5	75.5	78.5
d	Max .		55	56	57	59	61	65	66	71	76	79
dc	Max=Obunene bw'erinnya .		61.8	62.8	63.8	65.8	67.8	71.8	73.8	78.8	83.8	87.8
dc	Min .		61.5	62.5	63.5	65.5	67.5	71.5	73.5	78.5	83.5	87.5
L	al,ST,CU,VF,ZN .	Obunene bw’erinnya .	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
		Max .	2.7	2.7	2.7	2.7	2.7	2.7	2.7	2.7	2.7	2.7
		Min .	2.3	2.3	2.3	2.3	2.3	2.3	2.3	2.3	2.3	2.3
	FA .	Obunene bw’erinnya .	2	2	2	2	2	2	2	2	2	2
		Max .	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2	2.2
		Min .	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8	1.8
	PRG .	Obunene bw’erinnya .	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5
		Max .	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7
		Min .	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3	1.3
	PR .		0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3	0.3
buli yuniti 1000≈kg .	±25%	FA .	3	3.11	3.14	3.22	3.32	3.52	3.58	4.68	5	5.86
		VF .	1.67	1.72	1.75	1.77	1.83	1.94	1.97	2.58	2.76	3.22
		PRG .	0.9	0.93	0.942	0.965	1	1.05	1.07	1.4	1.5	1.76
		PR .	0.18	0.186	0.187	0.193	0.2	0.213	0.214	0.28	0.3	0.352
		Al .	4.06	4.2	4.3	4.35	4.48	4.8	4.83	6.35	6.75	7.9
		St	11.8	12.2	12.3	12.6	13	13.85	14	18.4	19.6	23
		Cu .	13.4	13.8	13.95	14.3	14.8	15.7	15.9	20.9	22.3	26.1
		Zn .	-	-	-	-	-	-	-	-	-	-
Obunene			Φ80×90	Φ85×95	Φ90×100	-	-	-	-	-	-	-
Obunene			Φ80×90	Φ85×95	Φ90×100	-	-	-	-	-	-	-
d	min=Obunene bw'erinnya .		80.7	85.7	90.7	-	-	-	-	-	-	-
d	Max .		81.2	86.2	91.2	-	-	-	-	-	-	-
dc	Max=Obunene bw'erinnya .		89.8	94.8	99.8	-	-	-	-	-	-	-
dc	Min .		89.5	94.5	99.5	-	-	-	-	-	-	-
L	al,ST,CU,VF,ZN .	Obunene bw’erinnya .	2.5	2.5	2.5	-	-	-	-	-	-	-
		Max .	2.7	2.7	2.7	-	-	-	-	-	-	-
		Min .	2.3	2.3	2.3	-	-	-	-	-	-	-
	FA .	Obunene bw’erinnya .	2	2	2	-	-	-	-	-	-	-
		Max .	2.2	2.2	2.2	-	-	-	-	-	-	-
		Min .	1.8	1.8	1.8	-	-	-	-	-	-	-
	PRG .	Obunene bw’erinnya .	1.5	1.5	1.5	-	-	-	-	-	-	-
		Max .	1.7	1.7	1.7	-	-	-	-	-	-	-
		Min .	1.3	1.3	1.3	-	-	-	-	-	-	-
	PR .		0.3	0.3	0.3	-	-	-	-	-	-	-
buli yuniti 1000≈kg .	±25%	FA .	5.95	6.25	6.61	-	-	-	-	-	-	-
		VF .	3.25	3.43	3.63	-	-	-	-	-	-	-
		PRG .	1.79	1.88	2	-	-	-	-	-	-	-
		PR .	0.358	0.376	0.4	-	-	-	-	-	-	-
		Al .	8	8.45	8.95	-	-	-	-	-	-	-
		St	23.1	24.5	25.9	-	-	-	-	-	-	-
		Cu .	26.3	27.8	29.5	-	-	-	-	-	-	-
		Zn .	-	-	-	-	-	-	-	-	-	-

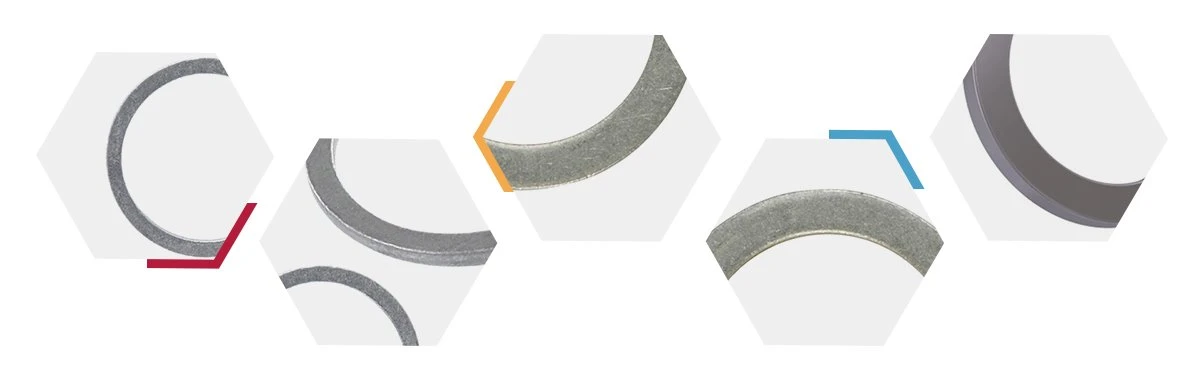

Ebikwata ku bikozesebwa .

Metal Sealing Washers-detail

Ebirungi by'ebintu .

Metal Sealing Washers-advantages

Ebirungi ebiri mu DIN 7603 Sealing Washer .

1. Ekyuma-Okugenda-Okukwatagana kw’ekyuma kiwa okufuga kwa torque n’endabika ewedde.

2. Ebyuma ebisiba ebyuma bisobola okukozesebwa okusiba elementi ku kwonooneka okw’ebweru.

4. DIN 7603 Sealing washer zikozesebwa okusiba mu mazzi, ggaasi, ebikalu n’enfuufu.

5. Ebisiba ebisiba bibaawo ku sikulaapu ne boluti eza bulijjo.

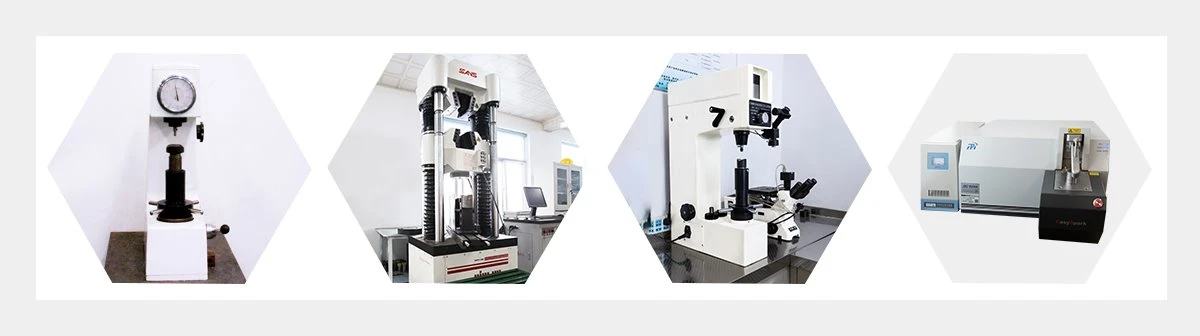

Okukebera omutindo .

Metal Sealing Washers-check

Abakebera QC balina obumanyirivu bulungi mu kumanya kw’ebintu awamu n’obukodyo bw’okukola. Ebikozesebwa eby’enjawulo bikozesebwa okukola ebigezo ebingi okukakasa nti ebintu ebisembayo bisobola okutuukiriza ebisaanyizo by’akatale ne bakasitoma.

Okupakinga n'okutikka konteyina .

Metal Sealing Washers-package

Okupakinga kuyinza okukolebwa okusinziira ku byetaago bya bakasitoma. era kyandibadde kinywezebwa mu bujjuvu okuziyiza okwonooneka okutasuubirwa mu kiseera ky’okusindika.

Mature warehousing and logistics system, n’ebikozesebwa mu dijitwali bifuula okutuusa ebintu okukola obulungi.

Enkozesa Ebifaananyi .

Metal Sealing Washers-usage
